Certification : CE/ISO9001
Place of Origin : CHINA
MOQ : 1set
Price : Negotiablet
Payment Terms : Negotiablet
Supply Ability : 4 set per month
Delivery Time : 20 days
Packaging Details : wooden case
Brand Name : CHUN TAI
Model Number : CT-EW-01
Name : Mask Making Equipment
Power Input : 220V / 50Hz
Product Size : 175*95mm
Warranty : 12 Months
Product Type : Mask, Mouth Cover
Other Name : Face Mask Maker Machine
High Speed Automatic Surgical Face Mask Machine Raw Material Non - Woven Fabric
Description :
The outer ear mask machine can only produce disposable flat masks with size 175*95mm, and cannot produce three-dimensional or N95 masks. Whether the masks produced by this machine are medically independent of the machine, as long as the masks are sterilized, the masks produced by this machine can be used to For surgical masks. Common medical masks: mainly composed of three layers of non-woven fabric. The inner layer is a common non-woven fabric; the outer layer is a non-woven fabric with a waterproof treatment, which is mainly used to isolate the liquid sprayed by the patient; the middle filter layer is an polypropylene meltblown non-woven fabric treated with electret; After the final production, it should be sterilized by ethylene oxide and left for 7 days for volatile toxicity.
Features:
parameters :
Control system power | 1 Phase 220V / 50HZ |
Air Pressure | 0.6Mpa |
Power supply | 3Phase 380V 50HZ |
servo motor | Domestic quality |
Control System | PLC |
sensor | Omron, Seak |
Pneumatic Components | SMC Yadek |
Operation screen | 10 inch capacitive screen |
Bearing | NSK |
Lead screw | Hiwin |
Security | Safety light grid |
Equipment structure | 2 ply |
equipment power | 8.5KW |
equipment weight | about2.6T |
Driven | Ordinary motor + servo |
Number of applicable layers | 3-layer |
Applicable materials | PP, non-woven fabric, synthetic fiber |
Processing methods | Ultrasonic welding |
Finished product specifications | 175*95mm |
Technical characteristics | |
1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed. 2. The production line adopts the structure of 2ply, with high production efficiency 3. Nose clips and ear loop are automatically cut and welded by ultrasound 4. Automatic counting and palletizing after welding earbands |
Our Advantages
1. Certified company with CE certificates.
2. Various production line, covering more than 50 different kinds of professional machinery to produce ultrasonic related machine.
3. Advanced technical support and strict quality management system..High-efficiency and timely service by E-mail, Skype, WhatsApp, etc. and 24-hours telephone service.
Details
![]() |

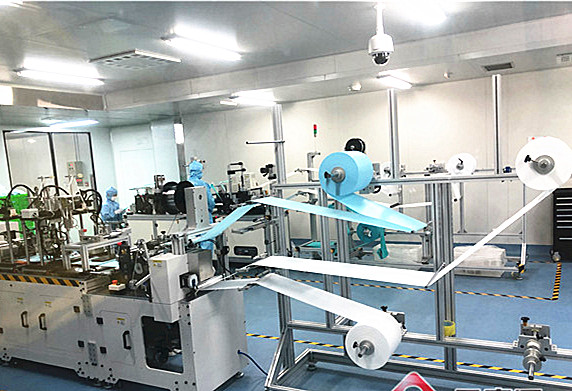

3 Phase 380V Automatic Surgical Face Mask Machine Raw Material Non - Woven Fabric Images |
